BMW 1 Series 125i 135i 140i (F40) RX1 (BE1) exhaust flap control

Flap control RX1 for BMW vehicles with an electric exhaust flap (type BE1)

Suitable for:

• 120i (F20 engine B48)
• 125i, 135i, 140i (F20 / F21 / F40)
• 225i (F45)
• 228i, 230i, 235i, 240i (F22 / F23 / F44)
• 230i (G42)
• M240i (G42)
• M2 F87
• 328i, 335i (F30 / F31 / F34 / F35)
• 330i, 340i (F30 / F31 / G20 / G21)
• 420i (G22 / G23 / G26)
• 428i, 430i, 435i, 440i (F32 / F33 / F36)
• 530i, 540i, 545E (G30 / G31) not with M-Performance exhaust system
• 630i, 640i (G32)
• X1 25i, 28i (F48)
• X3 30i (G01)
• X3 M40i (G01)
• X4 30i (G02)
• X4 M40i (G02)
• X5 28i, 35i (F15)
• X5 30ix, 40ix, 45ex (G05)
• X6 28i, 35i (F16)
• X6 M30i (G06)
• X6 M40i (G06)
• X7 40i (G07)
• 730i (G11, G12)
• 740i (G11, G12)
• 745i e (G11, G12)
• 840i (G14 / G15 / G16)
• Z4 M40i, 30i, 20i (G29)
• Toyota Supra MK5 3.0 & 2.0 (03.2019 - )
• i8

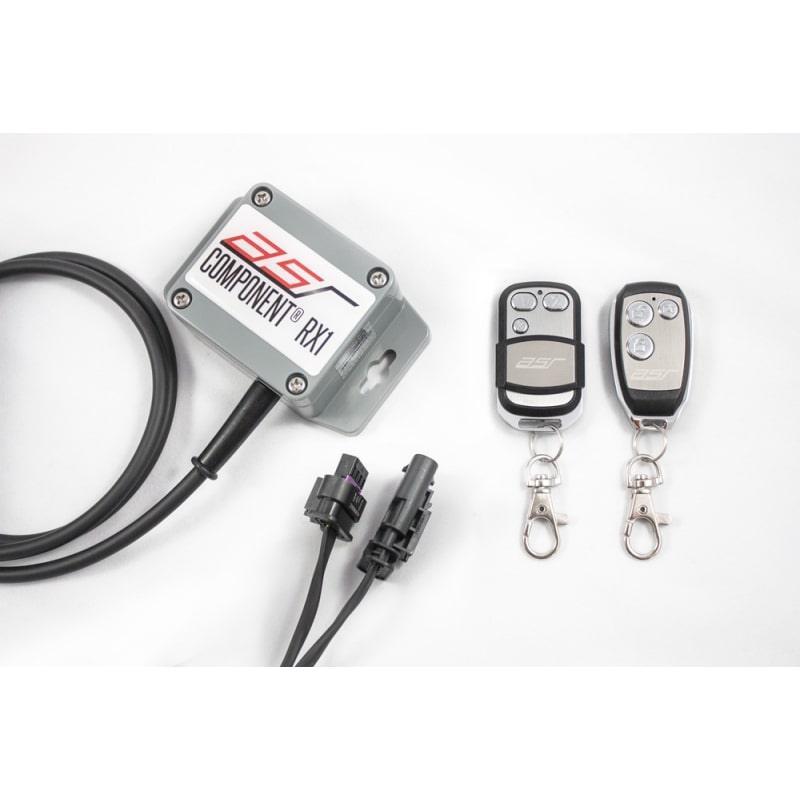

With this control unit you have the option of manually switching your exhaust flaps. The control is done using a hand-held transmitter. This gives you full control over your vehicle sound!

Advantages compared to competing products

Control independent of Drive Select

• You decide on the vehicle sound and not the selected driving profile

Correct series mode (module deactivated) even after vehicle start

• Important for visits to the workshop, service or TÜV.

Freely programmable start mode

• You decide for yourself what sound you want to hear when you start your vehicle

No interference with the CAN bus

• No danger to other control units
• No influence of software updates on the function of our control

Plug and Play with original plugs

• No damage to the original cables, no use of power thieves

start mode

The start mode describes the mode in which the device should start after the ignition is switched on. In the standard configuration, the device saves the last mode set and restores it when the vehicle is started. If you want a specific mode when starting, regardless of how you parked your vehicle, this can be programmed.

The start mode can be freely programmed as desired

Last state: Press the “Sport Mode” button 5 times within 5 seconds.

Other modes: Press the button for the mode you want to learn as the start mode for about 10 seconds.

The flaps open and close 5 times to confirm successful programming of the start mode.

assembly

• Installation is plug and play. The device has vehicle-specific plugs that can be mounted directly on the exhaust flaps. We recommend installing it in the trunk for optimal reception and to avoid weather influences. The cables are designed to be long enough.

Additional features

• Can be retrofitted at any time without leaving any traces
• No intervention in the standard CAN bus
• No error message in the error log

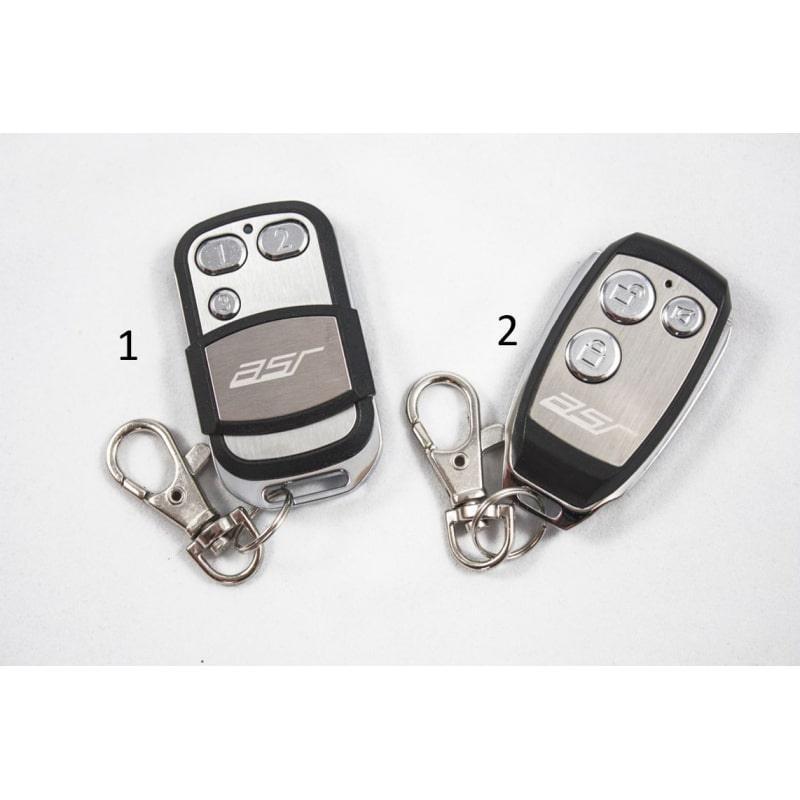

handheld transmitter

• High-quality and elegant appearance
• brushed stainless steel front
• High range

This device has been specially developed for use with electrical flap systems and therefore offers safe and long-lasting operation.

Rely on our quality!

Branded product Made in Germany!

notes

• No approval in the StVO
• For racing, show or export use only
• When driving at full load, the flaps should not be completely closed
• Installation at your own risk
• If the instructions are not followed, no liability is accepted for any damage caused
